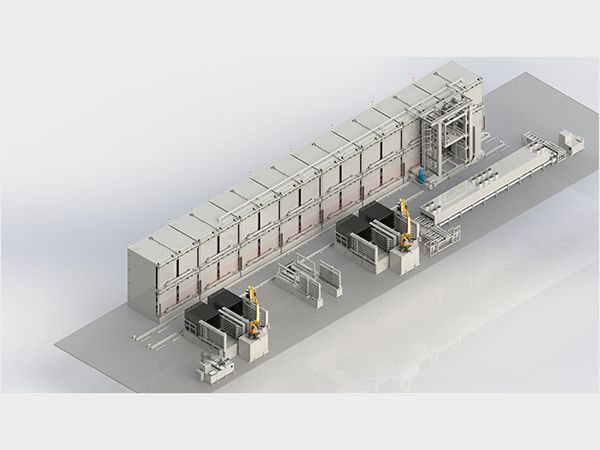

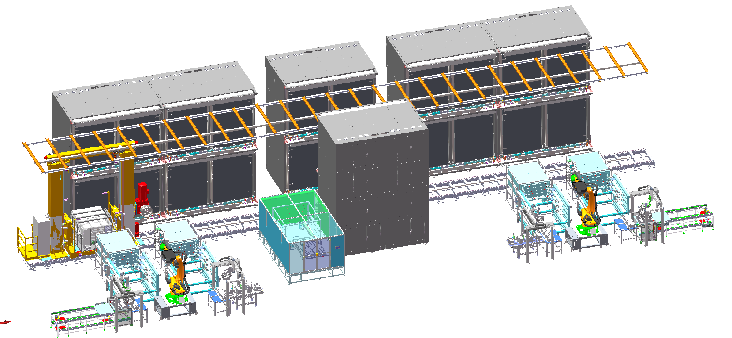

This equipment is used for the production of aluminum shell lithium ion battery drying line. High vacuum drying function of square aluminum shell battery Baking process. The equipment is mainly composed of feeding system, drying system, handling system, cooling & unloading system, control system and other five parts. The main advantage of the high-speed line is the high capacity ceiling, up to 60PPM.
Equipment parameters:
1、the battery drying area of 30.5 meters (length) ×9.65 meters (width);
2、product specifications: cell length: 300mm, height: 110mm, thickness: 30mm;
3、 production capacity: 2 lines daily capacity of 28,000 batteries; Single line capacity ≥10.15PPM;
4、compatible size length :100~140, mainly 110; Width :19~34, mainly 19;
5、compatible high: 260~340, mainly 300
Product advantages:
◆ The bottom of the battery is heated by contacting the large plate, the heat conduction of the reflective plate around it, and the vacuum pump vacuumizes the chamber of the vacuum oven to provide a vacuum environment for the battery cell, and the water in the pole plate of the battery cell is quickly vaporized and spilled under constant temperature and vacuum state to achieve the purpose of controlling the water content of the battery cell.
