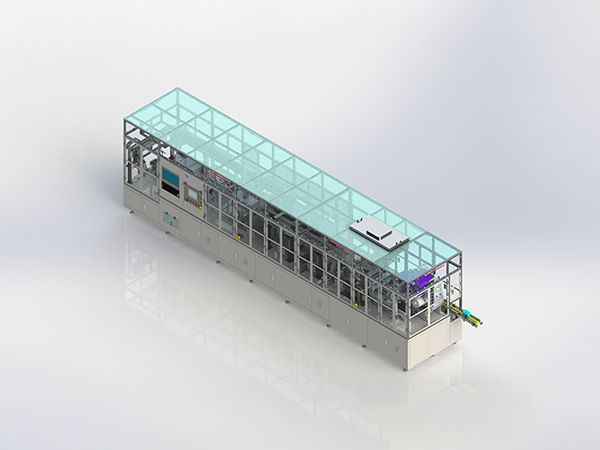

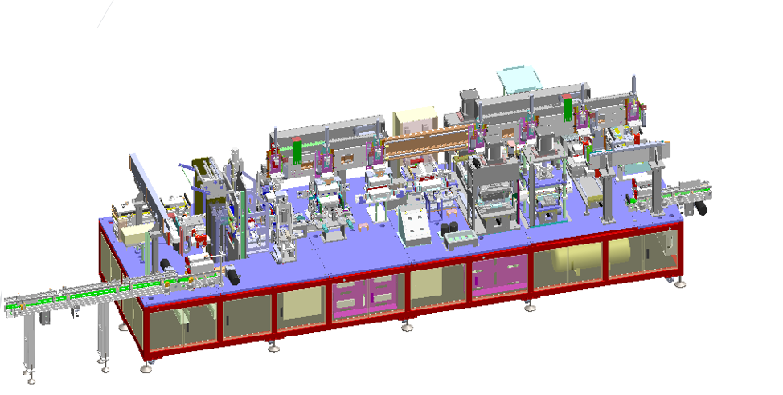

The equipment provides the completed battery code scanning in the previous process, and then carries out encapsulation, folding top and bottom adhesive, attaching top cover insulation sheet, size measurement, blanking code scanning, battery insulation test, and battery weighing. Finally, automatic feeding is provided to the conveyor belt for the next process of the fully automated connection equipment, the coating mode is compatible with U-type and return coating two modes.
Equipment parameters:
1、cell loading and unloading: automatic loading and unloading. PPM: production beat ≥12PPM (single machine);
2、a good rate: a good rate of equipment products ≥99% (only by the equipment caused by the bad coating products - folds, bubbles, etc., except bad products caused by incoming pollution);
3、MTBF (mean time between failures) :≥4h (failure caused by equipment);
4、equipment failure rate: ≤2.0%(only caused by equipment failure);
5、accuracy requirements: blue film on the side of the cell envelope positioning accuracy ≤±1.0mm;
Product advantages:
◆ Faster production capacity, easily meet 30PPM(battery height ≤150mm), easily cope with the increasing production demand
◆ Stronger compatibility, easily overcome the abnormal of poor conventional coating caused by the convex and convex battery surface, product yield ≥99.9%, breaking the bottleneck of conventional coating machine yield.
◆ Higher quality, the coating performance is better than the blue film, shear force, wear resistance, thermal conductivity, insulation pressure resistance, high temperature resistance and so on far exceeds the blue film, making the battery safety further
◆ Equipment stability is higher, the introduction of mature printing equipment across the border, officially bid farewell to the painful conventional packaging machine debugging and maintenance.
◆ More worrying NG product processing mode, only need to re-feed NG product, without time-consuming and laborious tear blue film steps.
◆ Compatible with the existing process, no need to transform the factory, no need to worry about the treatment of pollutants in the painting program
◆ The coating material has a longer service life, providing effective support for eliminating end customers' worries about battery life
