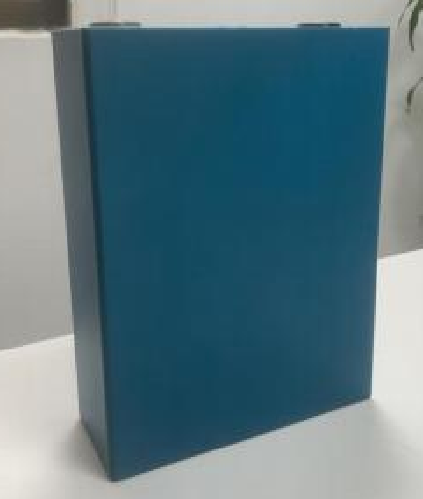

The special high-insulation ink is sprayed to the surface of the workpiece through the high-precision nozzle, and the ink is cured in the second-level curing device to form a uniform, smooth and flat coating. The thickness is highly controllable, and the printing accuracy can be controlled at plus or minus 10um.
The cured powder coating has excellent electrical insulation performance, excellent adhesion ability with the substrate and high bonding strength, which is more conducive to the structural design engineers of the power battery to realize new battery pack technologies such as large modules, CTC, CTP, etc. The performance parameters of voltage resistance can be greatly improved in the later stage, and repeated charging has little impact on the battery.
Equipment parameters:

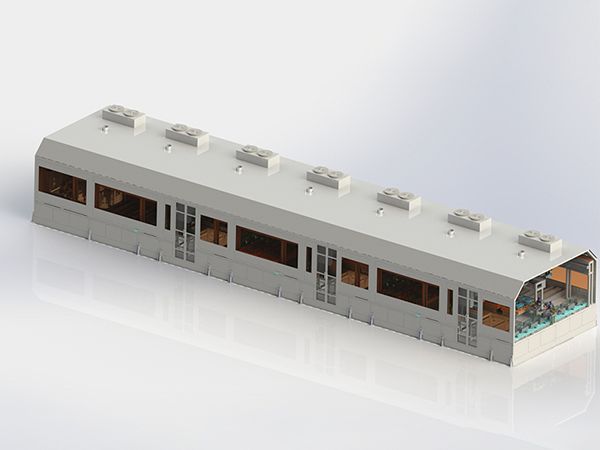

1, the whole line area of 25 meters (length) ×9 meters (width);
2, product specifications: cell length: 190-320mm, height: 80-130mm. Thickness: 25-60mm;
3, beat efficiency: PPM≥30;
4, UV glue: meet the performance verification;
5, with the accuracy of 600×2400dpi photo level, the 6 sides of the battery are accurately printed using environmentally friendly VU ink, which does not contain volatile organic compounds harmful to human body
Product advantages:
◆ Faster production capacity, easily meet 30PPM(battery height ≤150mm), easily cope with the increasing production demand
◆ Stronger compatibility, easily overcome the abnormal of poor conventional coating caused by the convex and convex battery surface, product yield ≥99.9%, breaking the bottleneck of conventional coating machine yield.
◆ Higher quality, the coating performance is better than the blue film, shear force, wear resistance, thermal conductivity, insulation pressure resistance, high temperature resistance and so on far exceeds the blue film, making the battery safety further
◆ Equipment stability is higher, the introduction of mature printing equipment across the border, officially bid farewell to the painful conventional packaging machine debugging and maintenance.
◆ More worrying NG product processing mode, only need to re-feed NG product, without time-consuming and laborious tear blue film steps.
◆ Compatible with the existing process, no need to transform the factory, no need to worry about the treatment of pollutants in the painting program
◆ The coating material has a longer service life, providing effective support for eliminating end customers' worries about battery life
